STUDY #06 · 2026 · IN OBSERVATION

Wave Interference

A model-driven visual study of superposed coherent waves.

TWO-SOURCE FIELD — Re ψ λ 0.05 · p 0.35 · ripple tank

WHAT IS THIS

When two or more waves overlap, they add. Where two crests meet, the wave grows; where a crest meets a trough, it vanishes. This principle of superposition draws interference fringes between a few sources, diffraction patterns behind a row of slits, and moiré where two periodic patterns cross.

This study sums coherent point sources analytically. From the complex field ψ(x,t) it shows both the moving wavefronts, Re ψ, and the time-averaged intensity, ½|ψ|² — the fringe pattern a long exposure would record. It runs in real time on the GPU (GLSL).

two-source fringes — the time-averaged photograph sources · N 2 · λ 0.055 · intensity ½|ψ|²

Motif interference / diffraction / moiré

Method A small simulator was generated and modified with AI assistance, then ported to a real-time GPU (GLSL) renderer — an analytic superposition of coherent point sources, shown as moving wavefronts and as time-averaged fringes. The visual output was selected through curated parameter exploration.

Observation A monochromatic pair draws the classic hyperbolic fringes; adding sources builds rosettes, a line of them becomes a diffraction grating, two crossed gratings a moiré. In white light each fringe takes the colour of its path difference — the interference turns iridescent.

Reference Thomas Young, "The Bakerian Lecture. Experiments and Calculations Relative to Physical Optics," Philosophical Transactions of the Royal Society of London, vol.94, 1-16 (1804).

Tools Python / NumPy / three.js / React / GLSL / ffmpeg / AI coding assistant

Year 2026

This is not a scientific simulation result, but a visual interpretation of the phenomenon.

PARAMETERS EXPLORED

param meaning effect on the image

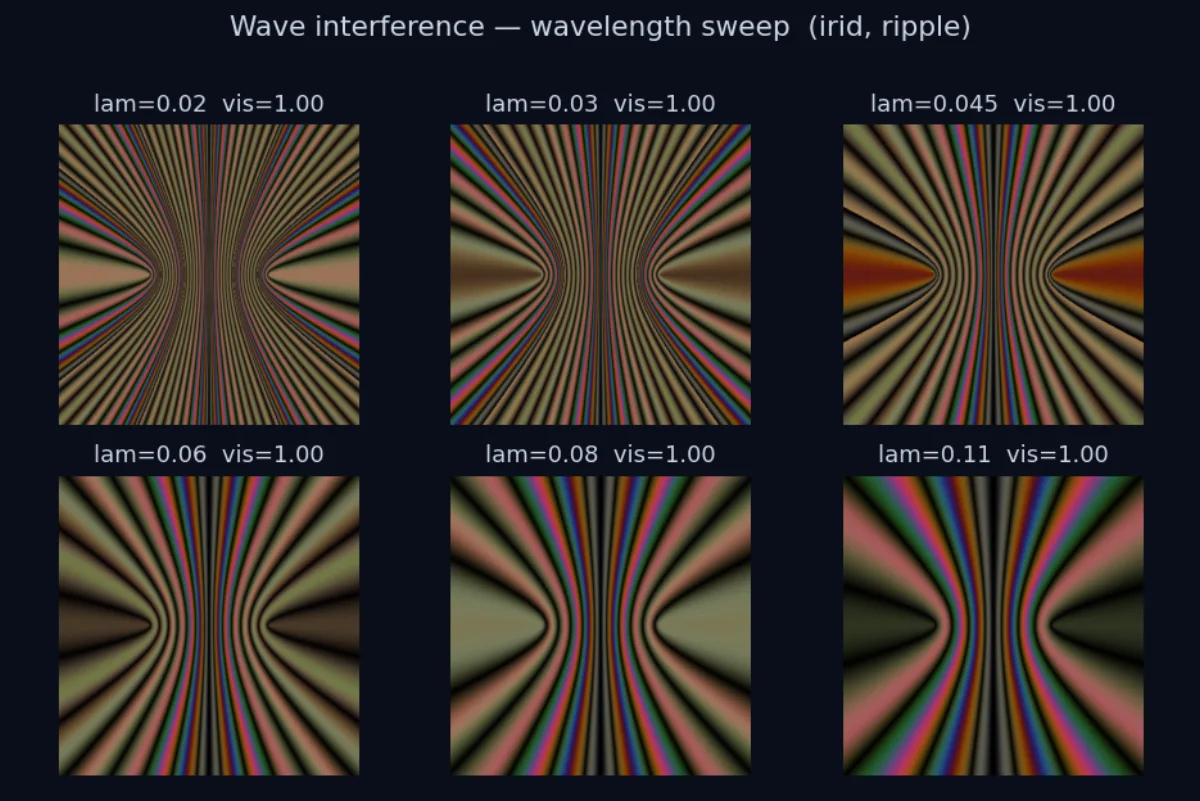

λ (wavelength) the wavelength smaller means finer fringes — the fringe spacing is proportional to λ

N (sources / slits) number of sources or slits 2 is the classic two-source pair; more builds a rosette, then a diffraction grating whose principal maxima sharpen

geometry the arrangement of the sources a ring gives interference, a line gives diffraction, two crossed gratings give moiré

p (amplitude decay) how the amplitude falls with distance 0 is an ideal plane wave (clean fringes); 0.5 a cylindrical wave; 1 the shading of a spherical wave

display what is shown from the same field the moving wavefronts Re ψ, or the still fringe photograph ½|ψ|²

colour the light source a single-wavelength laser, or the thin-film iridescence of the optical path difference

Each image below records its exact parameter set.

SELECTED STILLS — 5

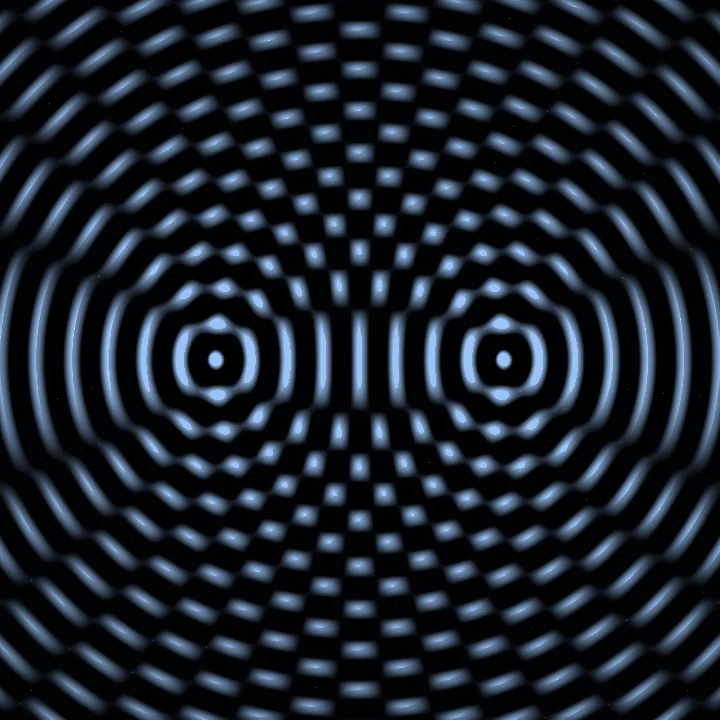

two-source ripple — the moving wavefield sources · N 2 · λ 0.05 · p 0.35 · wavefield

two-source fringes — Young's photograph sources · N 2 · λ 0.055 · intensity

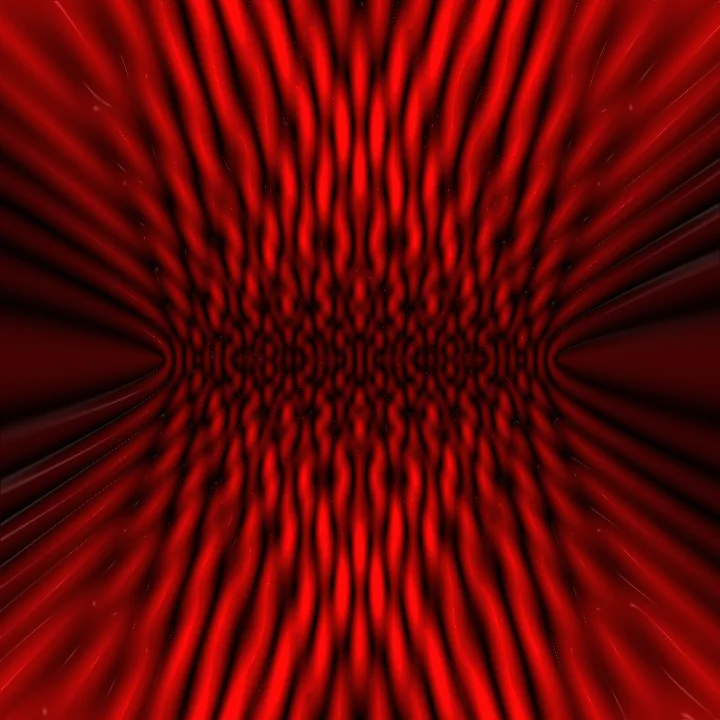

twelve-slit grating — He–Ne red grating · N 12 · λ 0.028 · p 0

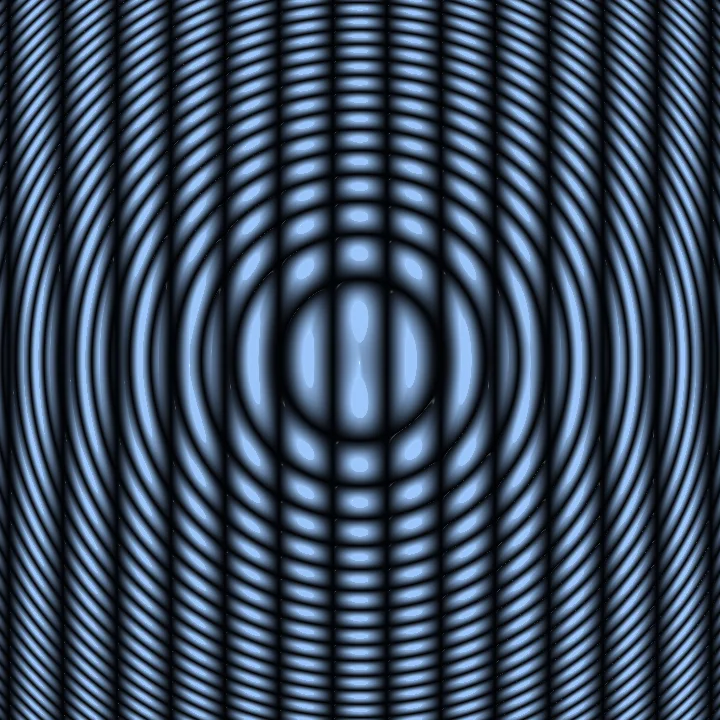

zone-plate moiré — a Newton-ring beat moiré · circular · λ 0.03

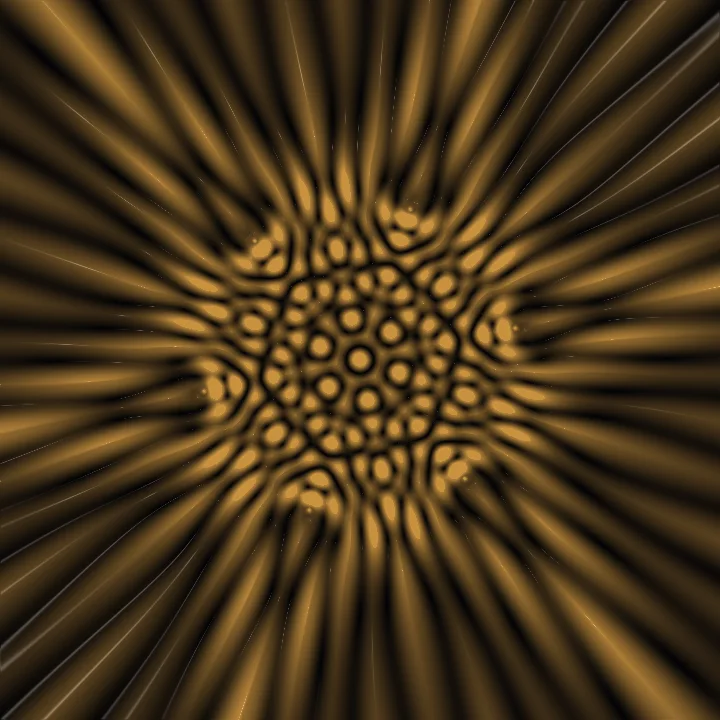

six-source rosette — house palette sources · N 6 · λ 0.05 · weaver

COLOUR = OPTICAL PATH DIFFERENCE

A monochromatic laser gives single-hue fringes — one wavelength, one colour. White light does not: the optical path difference Δ between two routes, measured in wavelengths, decides which colour interferes constructively, so the fringes turn iridescent.

This is thin-film interference — the colour of a soap bubble, an oil slick, a CD, a beetle's shell. The iridescent mode colours each fringe by frac(Δ/λ) through the Newton thin-film series.

These are artistic approximations of the physics (633 nm / 514 nm are representative laser lines; the hue mapping is a visual interpretation), not measurements.

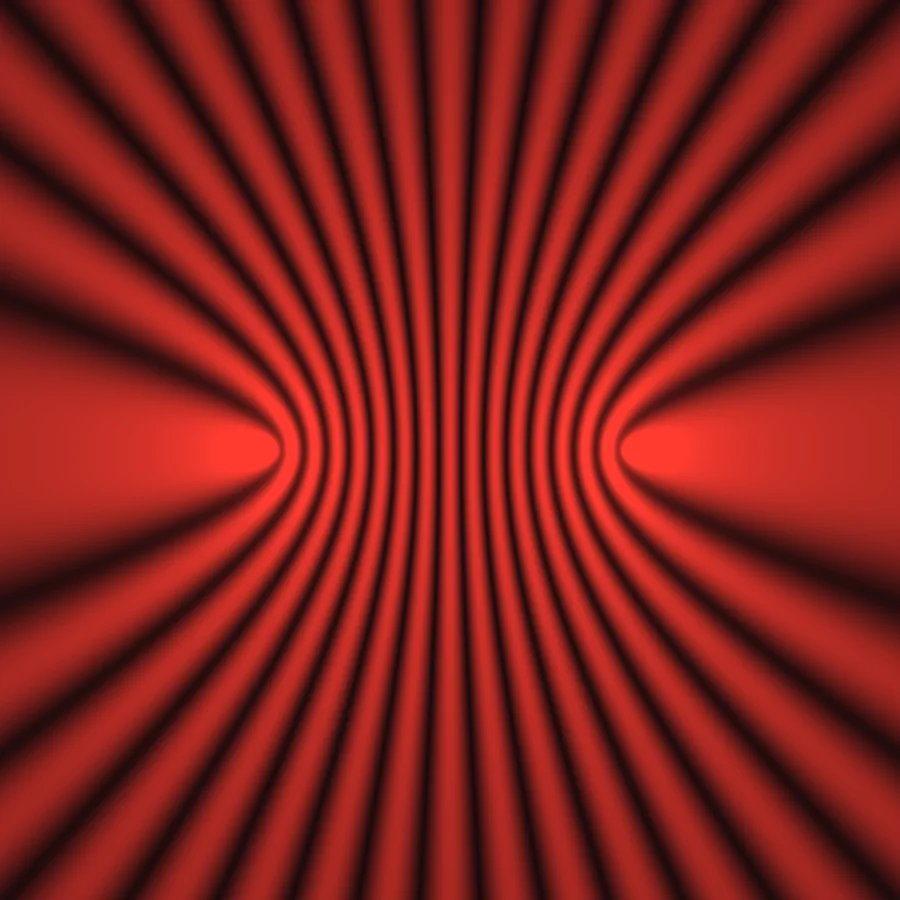

He–Ne laser — single red — He–Ne laser 633 nm · single red

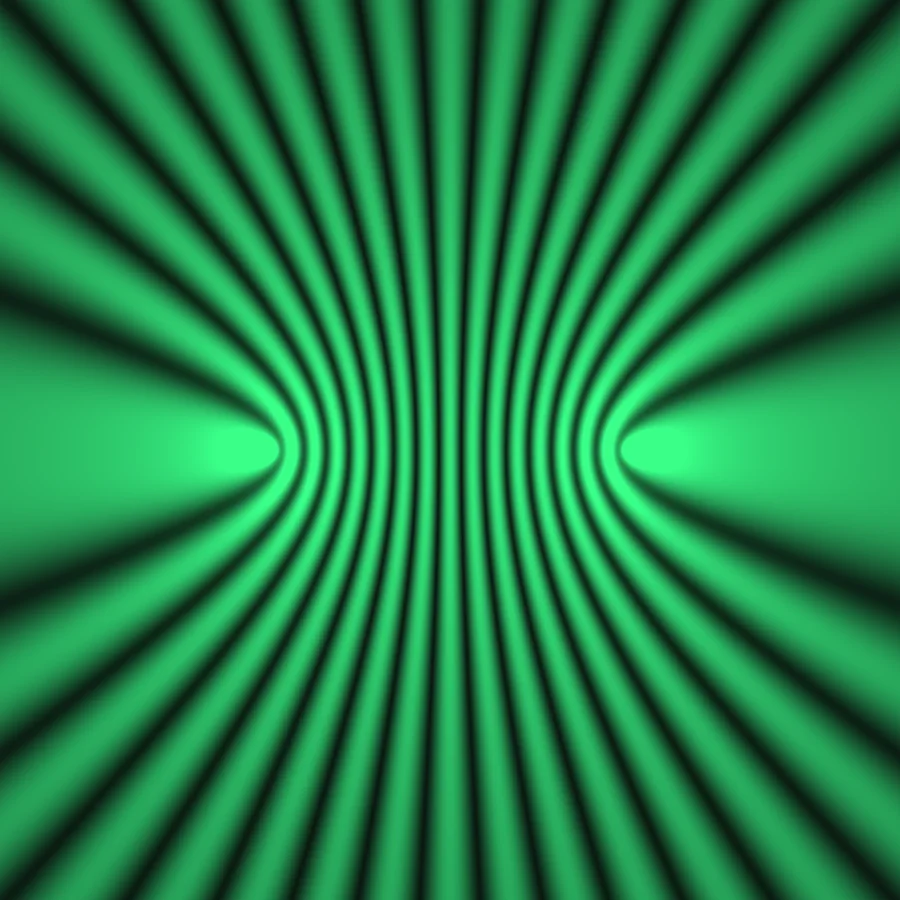

Argon laser — single green — Argon laser 514 nm · single green

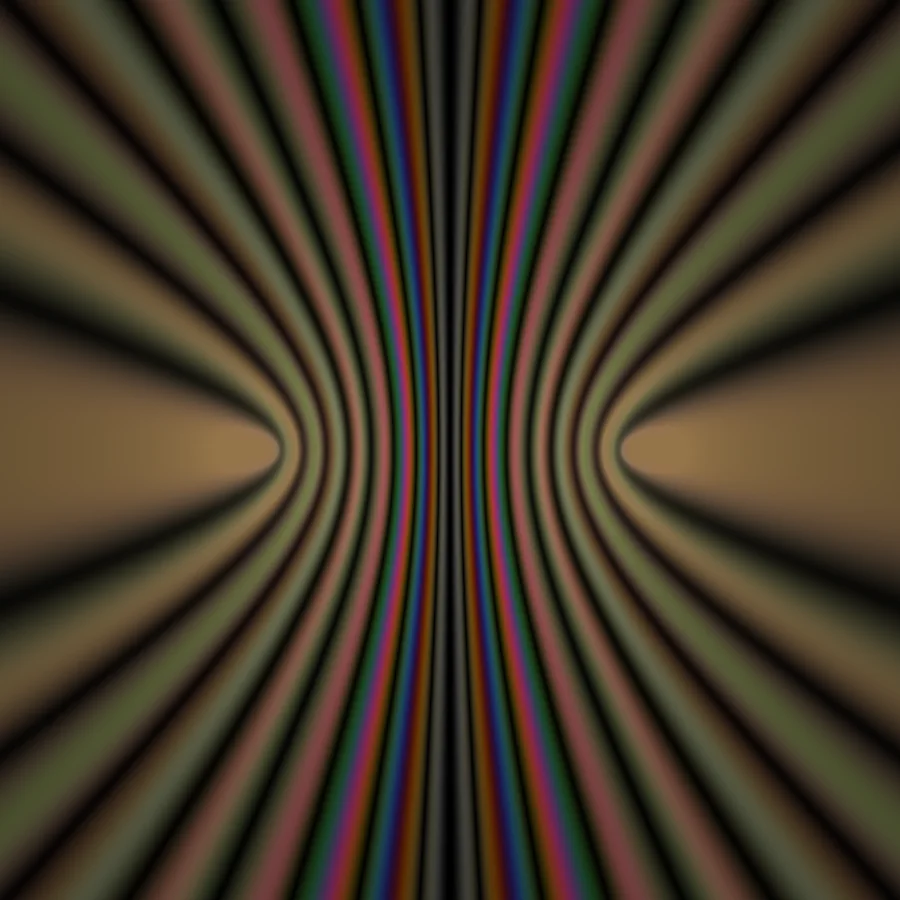

White light — iridescent — White light broadband · iridescent

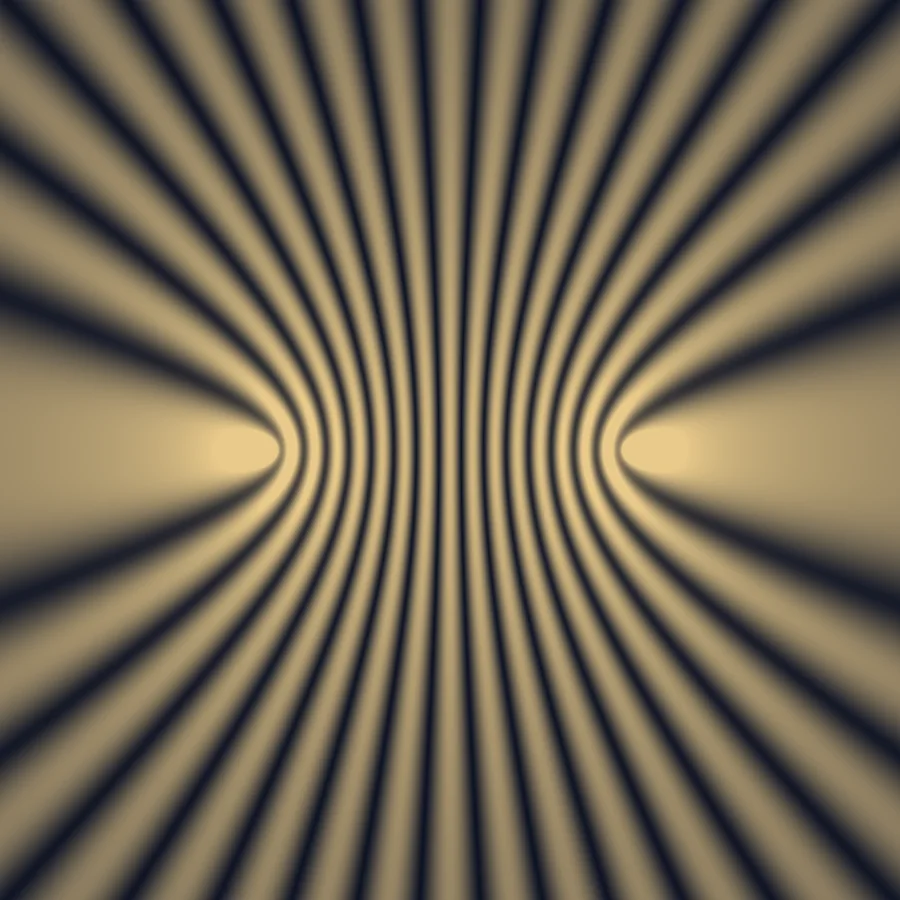

Weaver cut — teal / gold — Weaver cut house palette · teal / gold

The same two-source pattern under four light sources — mono laser lines, broadband white, and the house cut.

REFERENCES

Thomas Young, "The Bakerian Lecture. Experiments and Calculations Relative to Physical Optics," Philosophical Transactions of the Royal Society of London, vol.94, 1-16 (1804).
Isaac Newton, "Opticks: or, A Treatise of the Reflexions, Refractions, Inflexions and Colours of Light," London (1704).

INTERACTIVE STUDY

The same analytic superposition runs live in your browser — coherent point sources summed in real time. It is a deliberately simplified instrument, capped in resolution with a few curated knobs and no export, separate from the full engine used to author the finished works. Toggle between the moving wavefield and the time-averaged fringes, and let white light turn them iridescent.

SIMPLIFIED INSTRUMENTSUPERPOSITION — COHERENT SOURCES · LIVE

This interactive study is not intended as a scientifically validated reproduction. It is a visual interpretation generated from an implemented model and curated parameter exploration — and it is a deliberately simplified instrument, separate from the full engine used to author the finished works.
